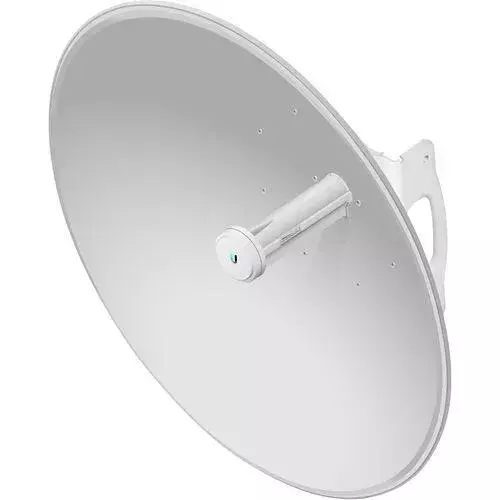

Ubiquiti Networks PBE-5AC-620 PowerBeam ac High-Performance airMAX Bridge
The Ubiquiti Networks PBE-5AC-620 PowerBeam ac High-Performance airMAX Bridge is suitable for CPE deployments requiring maximum performance. A dish reflector design with proprietary airMAX ac technology, offers improved latency, noise immunity, scalability, and significantly increased throughput performance of up to 450+ Mb/s and also offers wide range of 19+ mi (30+ km).
The InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance while eliminating cable losses. Ubiquiti’s airMAX engine with custom IC improves TDMA latency and network scalability
KES49,000.00
Available Offer
Share :
Product Details
Specification
Performance
Processor
Atheros MIPS 74 Kc, 720 MHz
Memory
128 MB DDR2, 8 MB flash
Networking Interface
1 x 10/100/1000 Ethernet port
Wireless Approvals
FCC, IC, CE
RoHS Compliance
Yes
Power Supply
24 V, 0.5 A Gigabit PoE
Power Method
Passive PoE (Pairs 4, 5+, 7, 8 Return)
Voltage Range
20 to 26 VDC
Max Power Consumption
8.5 W
Gain
29 dBi
Operating Frequency
5725 – 5850 MHz
Wind Loading
872 N at 200 km/h (196 lbf at 125 mph)
Wind Survivability
200 km/h (125 mph)
