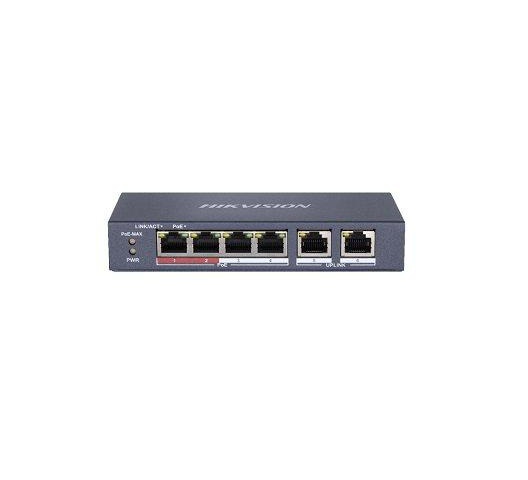

Hikvision DS-3E0106P-E/M – 4-Port 100 Mbps Unmanaged PoE Switch + 2 Uplink Ports
The Hikvision DS-3E0106P-E/M 4-Port 100 Mbps Unmanaged PoE Switch is a cost-effective and reliable networking solution designed for small businesses, home security systems, and surveillance networks. Equipped with 4 PoE+ Ethernet ports and 2 uplink ports, this switch provides seamless data transmission and power supply to connected devices such as IP cameras, wireless access points, and VoIP phones.
With plug-and-play functionality, extended PoE transmission up to 250m, and a robust metal design, the DS-3E0106P-E/M is an ideal choice for hassle-free network expansion and surveillance deployments.
Key Features & Benefits
- 4 × 10/100 Mbps PoE+ Ports + 2 × 100 Mbps Uplink Ports – Ensures stable network connectivity with dedicated uplinks for data transmission.
- IEEE 802.3af/at PoE Support – Delivers up to 30W per port, with a total PoE power budget of 60W, perfect for powering IP cameras and network devices.
- Extended PoE Mode (Up to 250m) – Ideal for long-range surveillance applications and remote deployments.
- Plug-and-Play Installation – No configuration required; simply connect and start using.
- Auto MDI/MDIX Support – Eliminates the need for crossover cables, simplifying deployment.
- Robust Metal Housing – Provides better heat dissipation and durability, ensuring long-term reliability.
- Energy-Efficient, Fanless Design – Reduces power consumption while ensuring silent operation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Hikvision DS-3E0106P-E/M |
| Ports | 6 (4 × PoE, 2 × Uplink) |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | 60W |
| Transmission Speed | 10/100 Mbps |
| Extended PoE Mode | Up to 250m |
| MAC Address Table | 2K entries |
| VLAN Support | Port-based VLAN |
| Flow Control | IEEE 802.3x |
| Power Supply | AC 100–240V |
| Power Consumption | ≤65W |
| Fanless Design | Yes |
| Installation | Desktop/Wall-Mountable |
Why Choose the Hikvision DS-3E0106P-E/M Unmanaged PoE Switch?
The Hikvision DS-3E0106P-E/M is a compact, cost-effective networking solution that ensures seamless connectivity and power delivery for IP surveillance cameras, access points, and VoIP systems. With extended PoE support, plug-and-play operation, and robust security features, this switch is an excellent choice for home security setups, small businesses, and retail environments.
