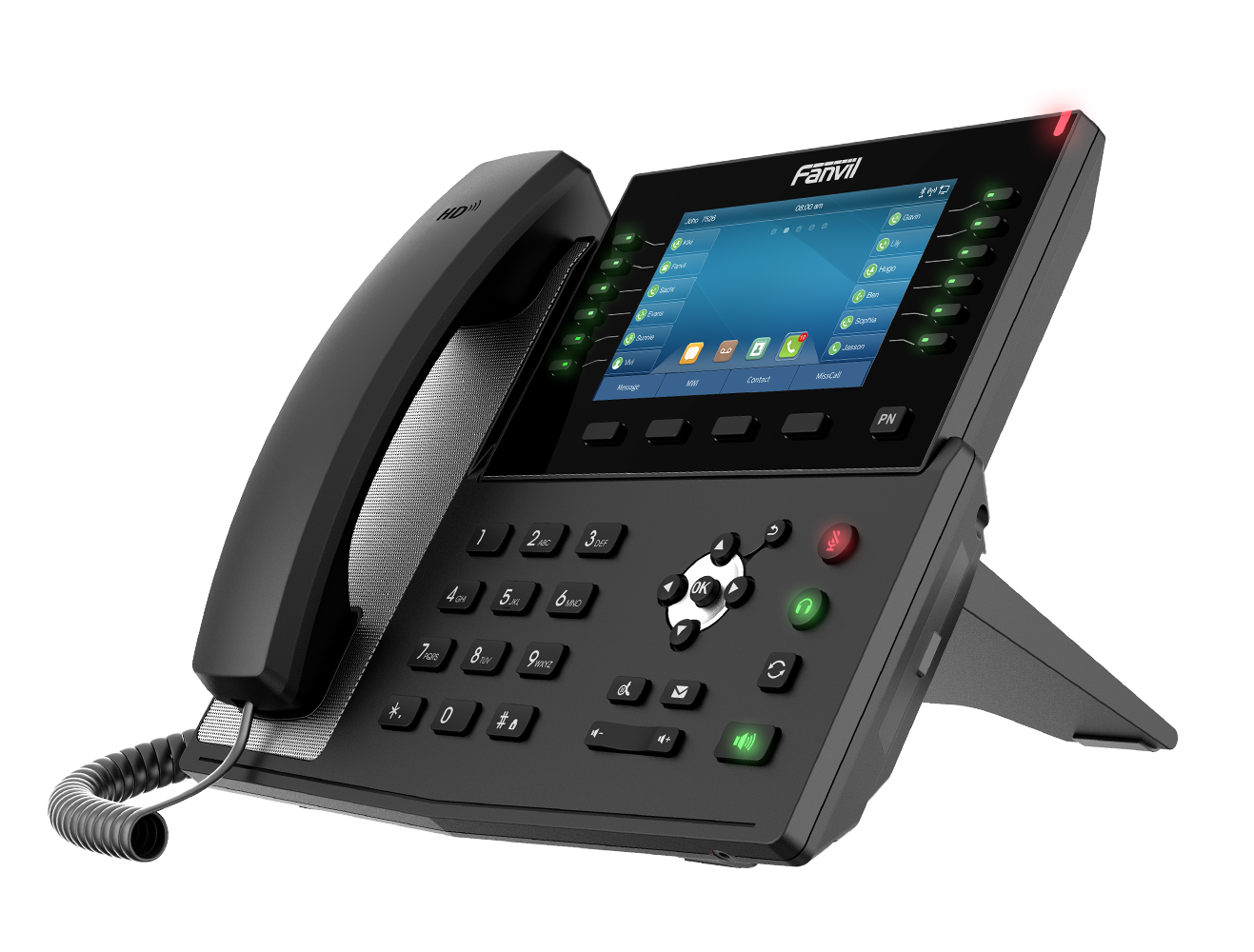

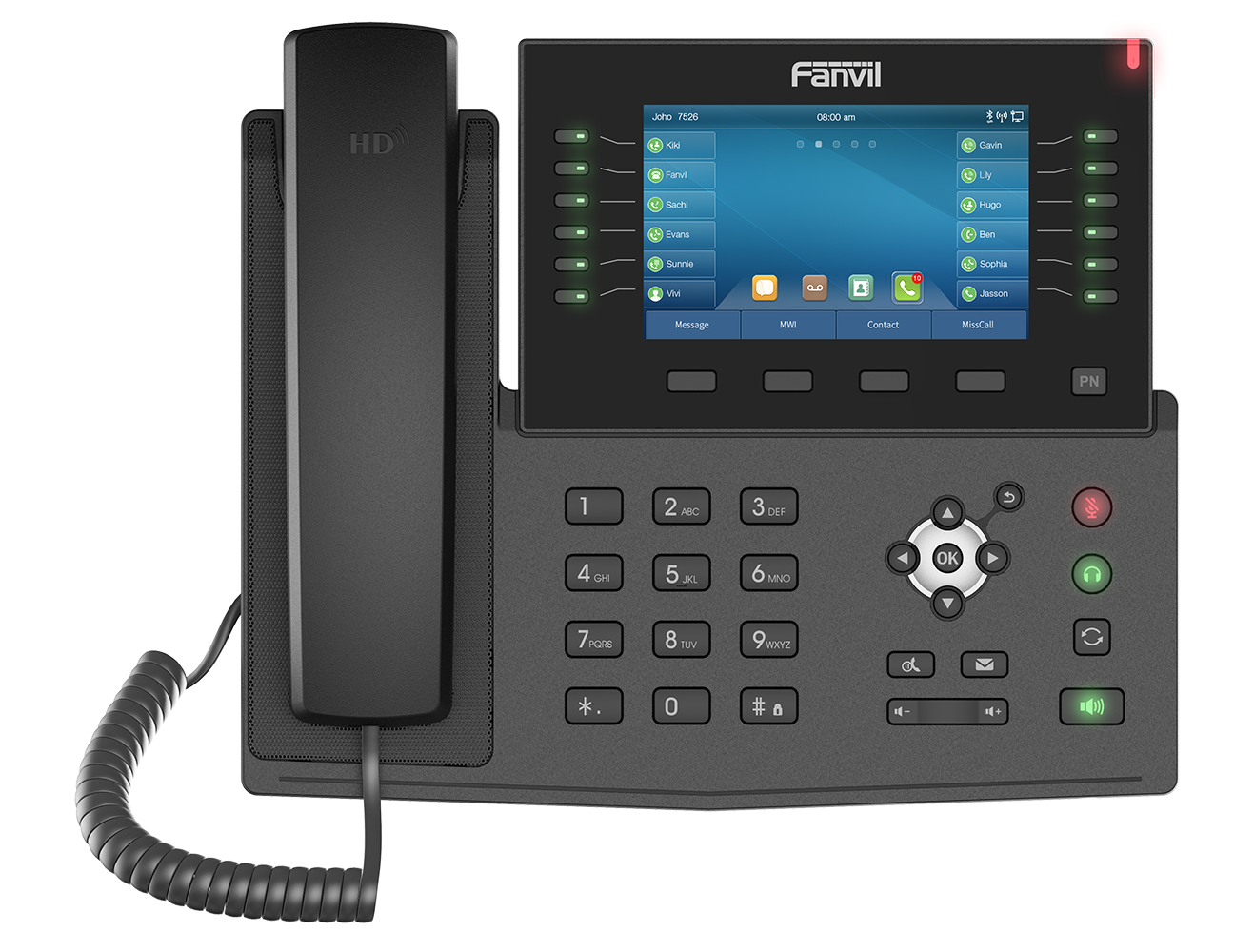

Fanvil X7A Android VoIP Phone, 7-Inch Color Touch
The Fanvil X7A is a communication device that offers an enhanced touch operation experience to users. With its 7-inch color touch screen, it provides a smooth and intelligent interface. One of its key features is the presence of 112 DSS (Dynamic Speed Dial) keys on the touch screen, allowing users to quickly access contacts or features.
The Fanvil X7A also comes with built-in WiFi and Bluetooth capabilities. This enables users to connect to wireless networks and pair with compatible devices for seamless communication. The built-in WiFi allows for convenient internet access, while the Bluetooth feature enables wireless connectivity with headsets or other peripherals.
In addition, the Fanvil X7A can be paired with an optional USB camera called the Fanvil CM60. This camera enhances the device's capabilities by providing superb audio and video quality for group conferences. With the CM60, users can have high-quality video calls and conferences, making remote collaboration more effective and engaging.
Overall, the Fanvil X7A, with its advanced touch screen, WiFi, Bluetooth, and optional USB camera, aims to simplify and improve daily communication experiences for users, making it a versatile and intelligent device for various communication needs.
Technical Specifications
Generic
- 20 SIP Lines
- HD Voice
- Support receiving a Video call
- PoE Enabled
- 7-inch (1024×600) color touch screen
- Handset / Hands-free / Headset mode
- Intelligent DSS Keys(Virtual buttons)
- Optional External Power SupplyDisplay
Phone Features
- Android 9.0 OS
- Local Phonebook (2000 entries)
- Remote Phonebook (XML/LDAP, 2000 entries)
- Call logs (In/out/missed, 1000 entries)
- Black/White List Call Filter
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Built-in Bluetooth 4.2: Support Bluetooth headset
- Built-in Wi-Fi 2.4GHz, 802.11 b/g/n
- 5GHz, 802.11 a/n/ac
- Support Recording
- Action URL / Active URI
- uaCSTA
Call Features
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forwarding (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (Depending on server)
- Redial Do-Not-Disturb
- Auto-Answering
- Voice Message (On server)
- 3-way Conference
- Hot Line
- Hot desking
- Video
- Wideband codec: G.722
- Narrowband codec: G.711(A/μ), G.723.1,
- 729AB, iLBC, AMR
- DTMF: In-band, Out-of-band(RFC 2833) and
- SIP INFO
- Full-duplex hands-free speakerphone with
- AEC (Max filter length – 128ms)
- Voice Activity Detection (VAD)
- Comfort Noise Generation (CNG)
- Adaptive jitter buffer
- Packet loss concealment (PLC)
- Audio format: WAV/MP3/OGG
- Frame rate selection: 5~30fps
- Video from remote site can be displayed in full screen
Deployment and Management
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
- Web Management Portal
- Supports the third party communication APP
- Supports Web, Telnet
- Supports encrypted configuration files download with AES
- Supports Web upgrade
- Supports factory reset data
Audio
- HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
- HAC handset
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec: G.711a/u, G.729AB, iLBC
- Wideband Codec: G.722, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Noise Reduction (NR)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Network
- Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
- IP Mode:IPv4
- IP Configuration: Static / DHCP
- Network Access Control: 802.1x
- VPN: OpenVPN (Requires third-party app support)
- VLAN
- LLDP
- CDP
- QoS
Physical Features
- LCD x1:7 inch (1024×600) color-screen LCD
- Keypad: 26 keys, including
- 5 Function keys (Hold, MWI,Mute,Headset, Redial)
- 4 Navigation keys
- 1 OK key
- 1 Return key
- 12 Standard Phone Digits keys
- 2 Volume Control keys, Up/Down
- 1 Hands-free key
- HD Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 5M CAT5 Ethernet Cable x1
- Back Rack x1
- RJ9 Port x2: Handset x1, Headset x1
- RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
- 0 Port x1: Standard A, Connect with Flash Driver
- Safety keyhole x1
- Power: 5V/2A or PoE
- Power Consumption (PoE): 1.596~11.86W
- Power Consumption (Adapter): 0.907~9.38W
- Working Temperature: 0~45℃
- Working Humidity: 10~95%
- Installation: Desktop Stand
- Color: Black
- Device Dimensions
- Desktop Stand (Angles 1): 268x185x189mm
- Desktop Stand (Angles 2): 268x201x168mm
- Gift Box Dimensions: 304x297x66mm
- Outer CTN Dimensions: 616x358x329mm (10 PCS)
Protocols
- 0 over
- UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCPCDP
- LLDP
- PPPoE
- 1x
- OpenVPN (Requires third-party app support)
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
