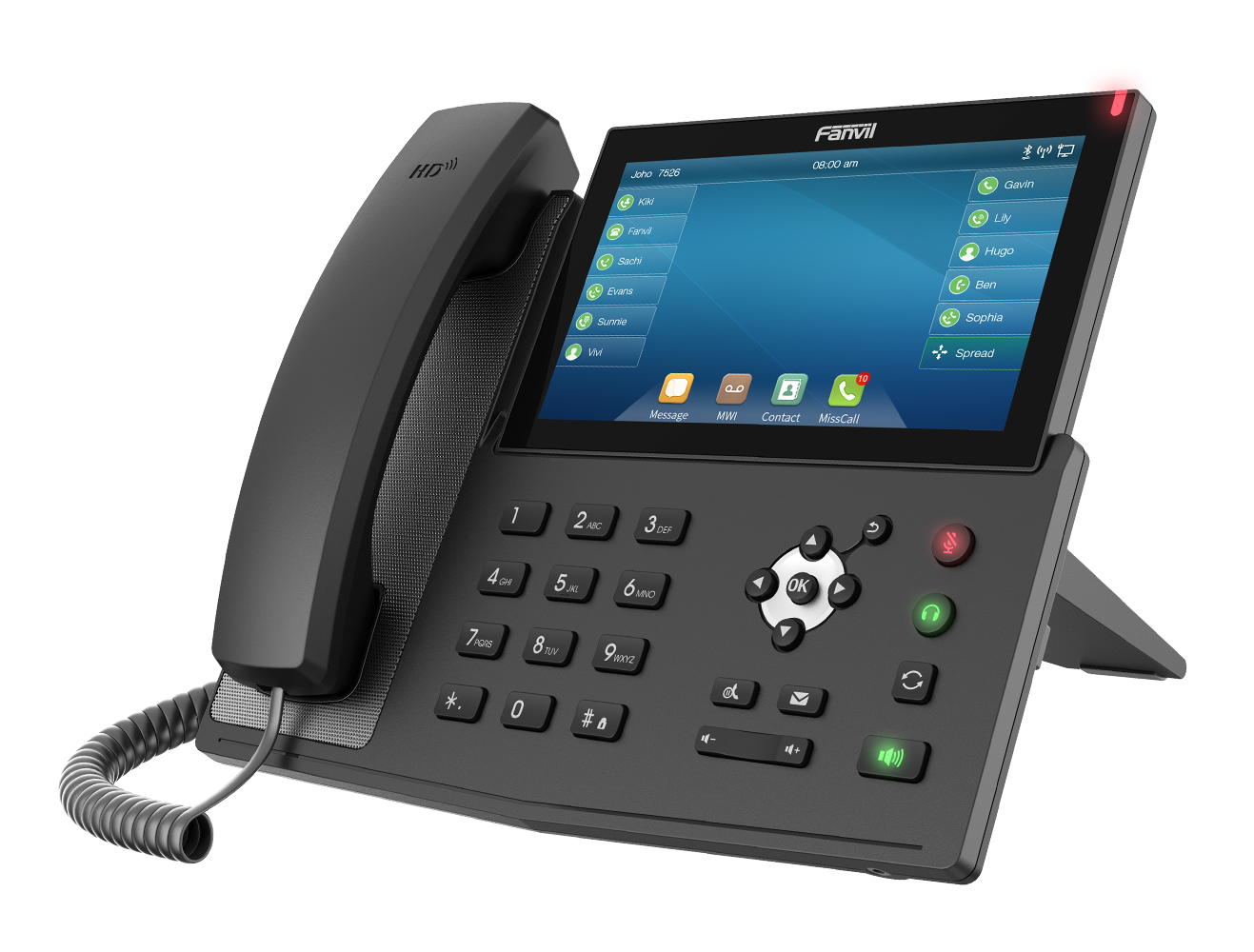

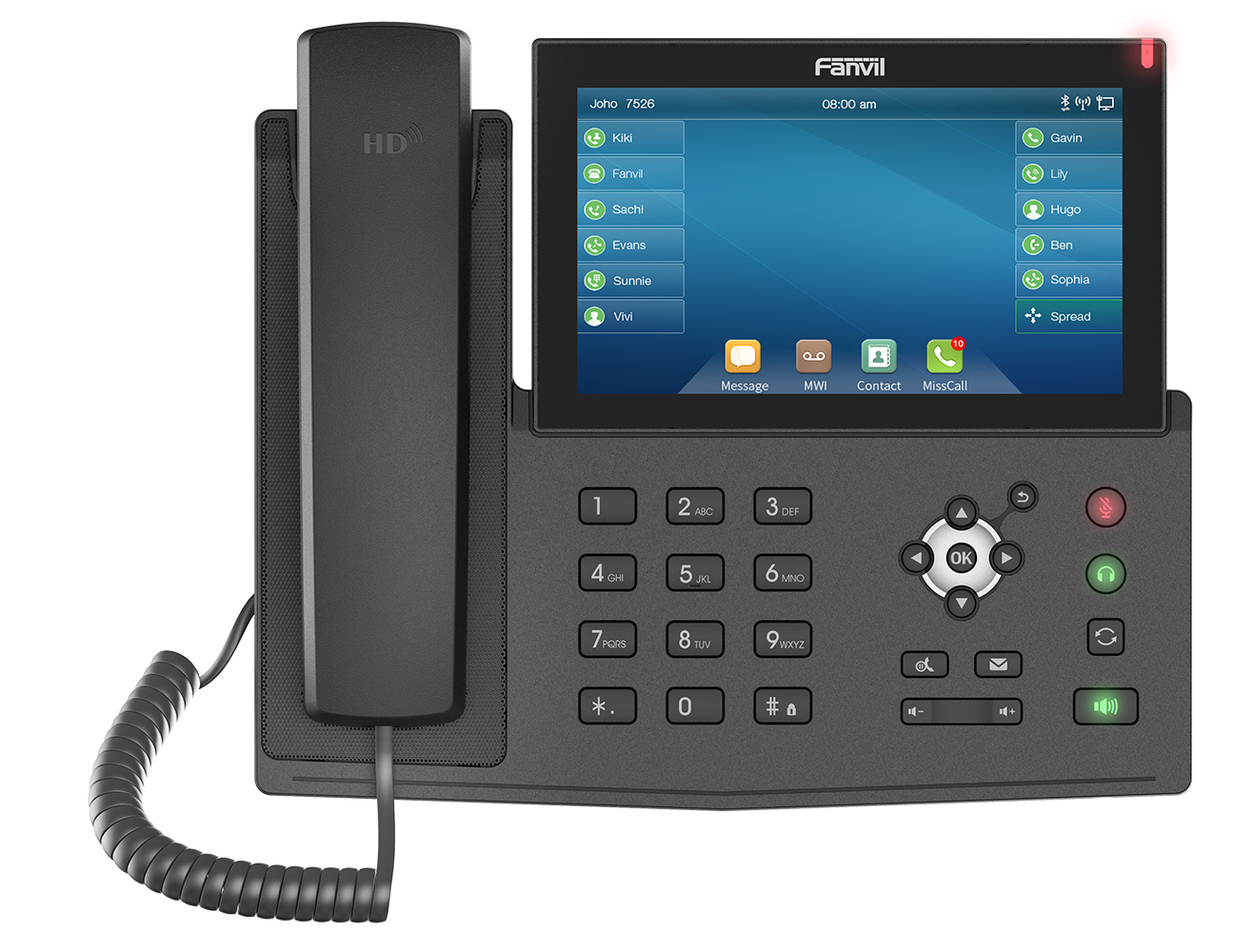

Fanvil X7 High-end Touch Screen IP Phone
The Fanvil X7 V2 is a premium enterprise IP phone designed specifically for business users. It boasts a range of features that make it a powerful and convenient communication tool for professionals.
One of the standout features of the Fanvil X7 V2 is its large 7-inch color touch screen. This spacious display provides users with a user-friendly interface for easy navigation and access to various functionalities. With its vibrant colors and intuitive controls, users can quickly find and utilize the phone's features with ease.
The X7 V2 is equipped with an impressive number of programmable DSS (Dynamic Speed Dial) keys. With up to 127 DSS key entries available, users can personalize their phone and assign quick-access shortcuts to their most frequently used functions or contacts. This feature greatly enhances productivity by allowing users to have immediate access to vital information or perform important actions without navigating through multiple menus.
With support for up to 20 SIP lines, the Fanvil X7 V2 can handle a high volume of simultaneous calls, making it suitable for businesses with demanding communication needs. Users can easily manage multiple calls and switch between lines effortlessly, improving efficiency and ensuring smooth call handling.
The X7 V2 also delivers excellent audio quality with its HD audio capabilities. Crystal-clear voice transmission and reception allow for clear and natural conversations, even in noisy environments. This feature is particularly important for professionals who rely on phone conversations as a primary means of communication.
Furthermore, the Fanvil X7 V2 offers convenient connectivity options. It supports both Bluetooth and Wi-Fi connectivity, enabling users to connect their wireless headsets or access the internet without the need for additional cables. This flexibility adds convenience and mobility to the phone, allowing users to move freely within their workspace while staying connected.
In summary, the Fanvil X7 V2 is an advanced enterprise IP phone that combines a large touch screen, extensive DSS key entries, multiple SIP lines, HD audio, and wireless connectivity. Its feature-rich design and user-friendly interface make it an ideal choice for business professionals who require immediate access to their important information and need a reliable and efficient communication tool.
Technical Specifications
General
- 20 SIP Lines
- HD Voice
- Support receiving Video call
- POE Enabled
- 7 Inch Electric Capacity Touch Screen
- Handset / Hands-free / Headset mode
- Intelligent DSS Keys
- Optional External Power Supply
Call Features
- Call out / Answer / Reject
- Mute / Unmute (microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forwarding (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (on server)
- 3-way Conference
- Hot Line
- Hot desking
Phone Features
- Local Phonebook (2000 entries)
- Remote Phonebook (XML/LDAP, 2000 entries)
- Call logs (in/out/missed, 1000 entries)
- Black/White List Call Filtering
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronisation
- Built-in Bluetooth 2.1: Support Bluetooth headset
- Support Wi-Fi Dongle
- Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable
- Support Recording (Through Flash Drive or Server Recording )
- Action URL / Active URI
- uaCSTA
Video
- Video codec: H.264
- Video call resolution: QCIF / CIF / VGA
Audio
- HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
- HAC handset
- Wideband ADC/DAC 16KHz Sampling
- Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
- Wideband CODEC: G.722, AMR-WB, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Networking
- Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypas
- IP Mode:IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- LLDP
- QoS
- RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Deployment and Maintenance
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
- PNP/TR-069
- Web-based Packet Dump
- We management Portal
- Configuration Export / Import
- Phonebook Import/Export
- Firmware Upgrade
- Syslog
Physical Specifications
- Main LCD x1: 7.0 inch (800x480) Capacitive touch screen
- Keypad: 26 keys, including
- 5 Function keys (Hold, MWI,Mute,Headset, Redial)
- 4 Navigation keys
- 1 OK key
- 1 Return key
- 12 Standard Phone Digits keys
- 2 Volume Control keys, Up/Down
- 1 Hands-free key
- HD Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 1.5M CAT5 Ethernet Cable x1
- Back Rack x1
- RJ9 Port x2: Handset x1, Headset x1
- RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
- USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
- DC Power Input: 5V/2A
- Power Consumption (POE): 2.6~9W
- Power Consumption (Adapter): 2.4~8W
- Working Temperature: 0~40℃
- Working Humidity: 10~95%
- Installation: Desktop Stand
- Colour: Black
- Desktop Stand (angles 1): 268x185x189mm
- Desktop Stand (angles 2): 268x201x168mm
- Gift Box Dimensions: 342x271x63mm
- Outer CTN Dimensions: 570x340x365mm (10 PCS)
