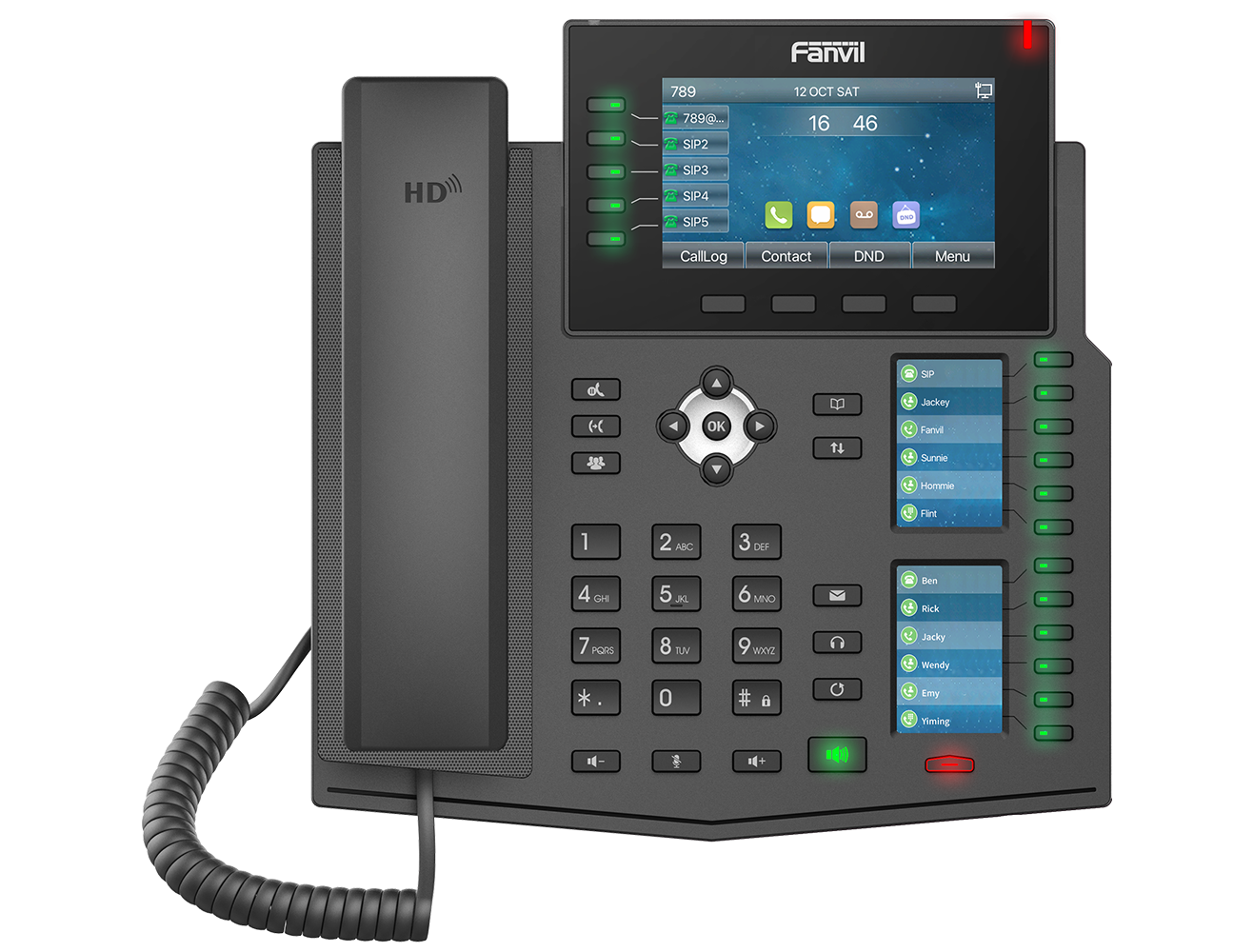

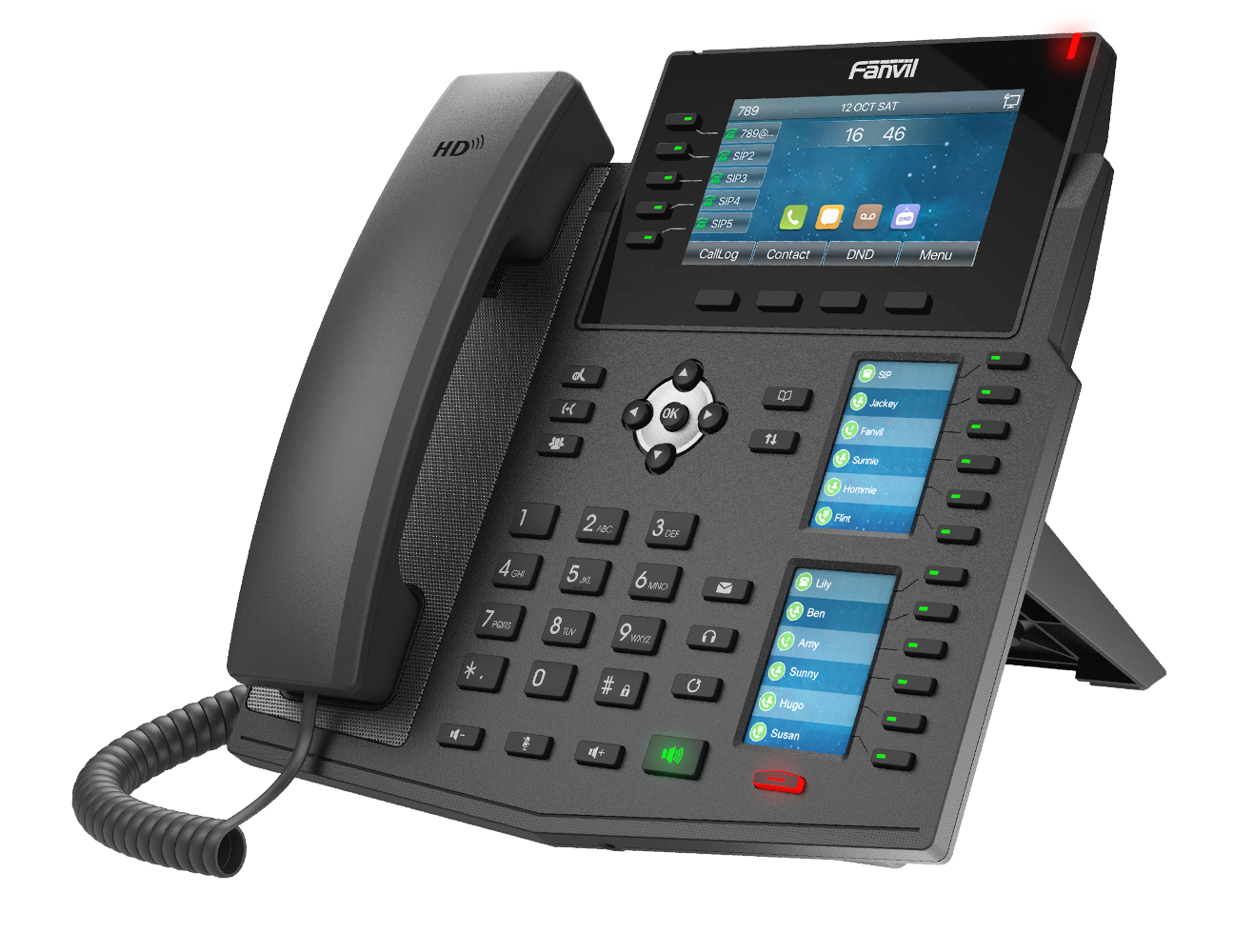

Fanvil X6U 6 line Ultra-Elegant Gigabit
The Fanvil X6U is an enterprise-level IP phone that offers advanced features and functionality. It is equipped with three color displays, providing users with enhanced visibility and flexibility. The addition of line keys with LED lights allows for easy access to multiple lines, improving productivity for businesses with high call volumes.
The phone also includes built-in Bluetooth, enabling users to connect wireless headsets or other Bluetooth devices for added convenience and mobility. This feature can be particularly useful in environments where users need to move around while on a call.
One of the notable audio features of the Fanvil X6U is the Harman speaker, which delivers high-quality sound. The phone supports wideband codecs such as G.722 and Opus, ensuring an immersive HD audio experience. These codecs offer superior audio quality by providing a broader frequency range, resulting in clearer and more natural voice communication.
With its comprehensive feature set and audio capabilities, the Fanvil X6U is designed to meet the diverse demands of businesses, particularly those requiring a high-performance IP phone for professional communication.
Technical Specifications
Generic
- 20 SIP lines
- HD Voice
- Support receiving Video Call
- PoE Enabled
- 3 LCDs (Main + DSS)
- Handset / Hands-free / Headphone mode
- Intelligent DSS Keys
- Desktop Stand / Wall-mounted (need an additional wall hanging part)
- Optional External Power Supply
Phone Functions
- Local Phonebook (2000 entries)
- Remote Phonebook (XML/LDAP, 2000 entries)
- Call logs (In/Out/Missed, 1000 entries)
- Black/White List Call Filter
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronisation
- Built-in Bluetooth 2.1: Support Bluetooth headset
- Support WiFi Dongle
- Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
- Support Recording (Through Flash Drive or Server)
- Action URL/Active URI
- uaCSTA
Call Functions
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forward (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (Depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (With server)
- 3-way Conference
- Hot Line
- Hot desking
Video
- Video codec: H.264
- Video call resolution: QCIF / CIF / VGA
Audio
- HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
- HAC handset
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
- Wideband Codec: G.722, AMR-WB, Opus
- Full-Duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD)/Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)/Noise Reduction (NR)
- Packet loss concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-band - DTMF-Relay (RFC2833)/SIP INFO
Network
- Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
- IP Mode: IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static IP / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- LLDP
- QoS
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
