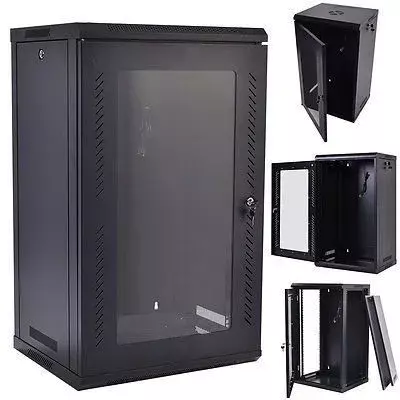

Quick Product Specifications
Full Vented Top Frame with Rear Cable Entrance
4 x 4-inch Top Fan Tray with Guard & Filter (Low Noise)
2 x Lift Off Type Side Door with Quick Release Catch & Cam Lock
1 x Tempered Glass Front Door with Ventilation Slots and Q-Turn Flush Latch Lock
1 x Full Perforation Rear Door with Cam Lock
1 x Set Panel Mount Support
4 x Panel Mount with Unit Indication & Silk Screen Numbering
1 x Base Frame with Provision of Cable Entrance
1 x Set of Heavy Duty Castor Wheels
1 x Set of Levelling Feet
1 x Power Distribution Unit (6 Way with 13A UK-Type Sockets)
1 x Allen Key tool
2 x Earth line grounding key
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 4-ch | |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input: | 24-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | Support HDTVI input: 4MP,3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz Note: The 3 MP signal input is only available for channel 1/2/3/4. Support AHD input: 4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz Support CVI input: 1080p25, 1080p30, 720p25, 720p30 support CVBS input | |
| IP Video Input: | 8-ch(up to 32ch) Up to 6MP resolution | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480 | |
| HDMI2 Output: | 1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI/VGA Output: | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz | |
| Recording resolution: | When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF | |
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p/720p@15fps; 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
| Video Bit Rate: | 32 Kbps-6 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Dual Stream: | Support | |
| Playback Resolution: | 4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF | |
| Synchronous Playback: | 16-ch |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 4 SATA Interfaces | |
| Capacity: | Up to 10 TB capacity for each disk | |
| e-SATA Interface: | 1 eSATA interface |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
| USB Interface: | 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel | |
| Serial Interface: | 1 RS-232 serial interface 1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface | |
| Alarm Input: | 16-ch | |
| Alarm Output: | 4-ch |
| General | ||
|---|---|---|
| Power Supply: | 100 to 240 VAC | |
| Consumption: | ≤ 45W(without hard disks) | |
| Working Temperature: | -10 oC to +55 oC (+14 oF to +131 oF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch) | |
| Weight: | ≤ 7 kg (15.4 lb) |
KES28,500.00
